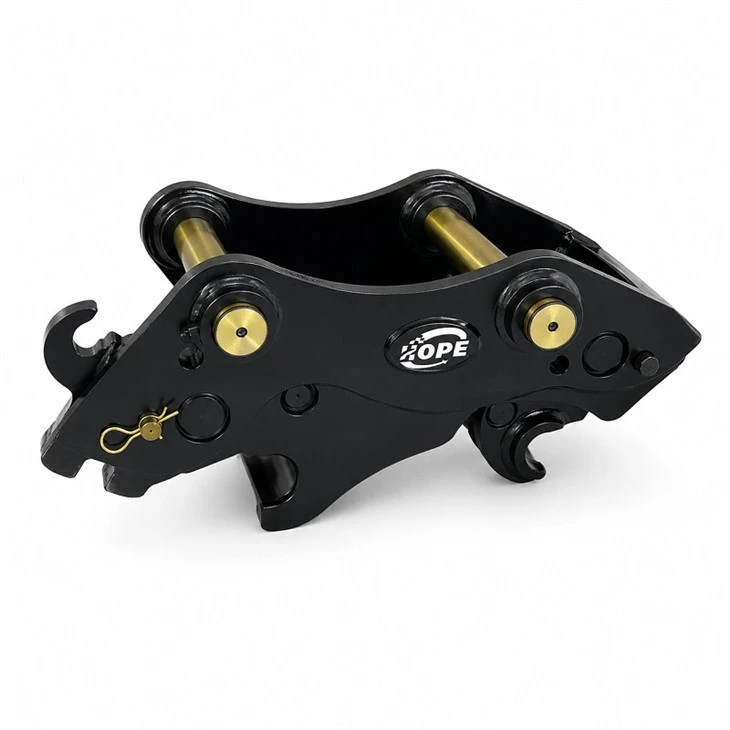

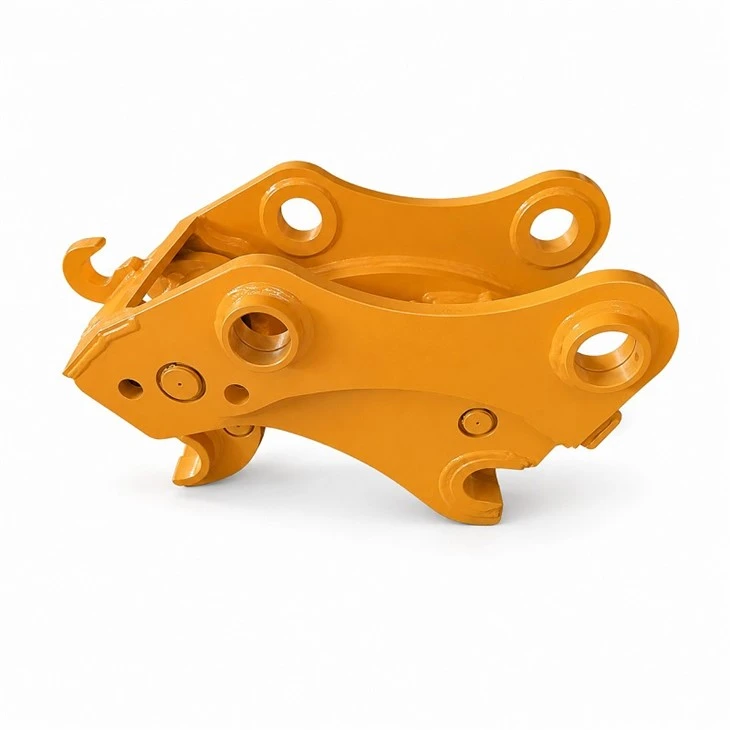

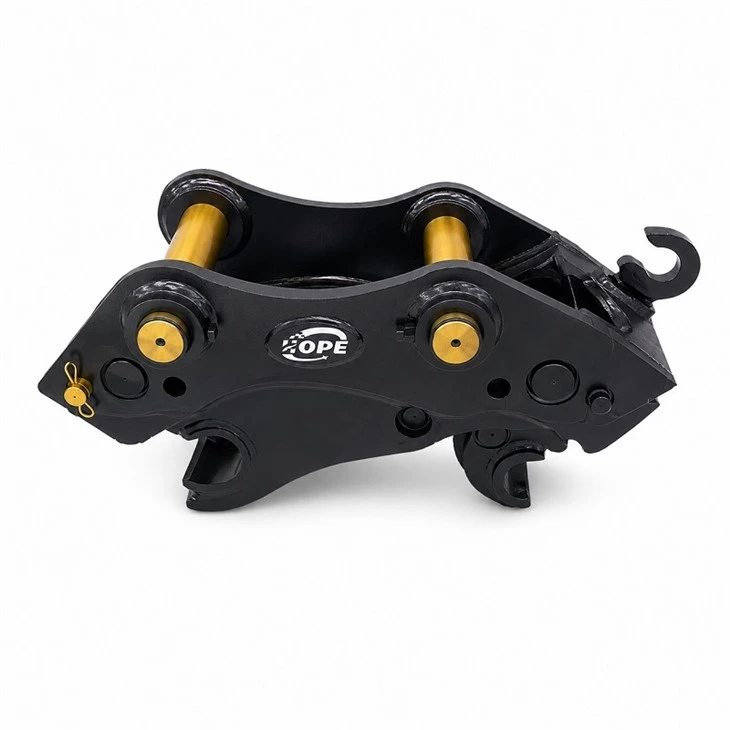

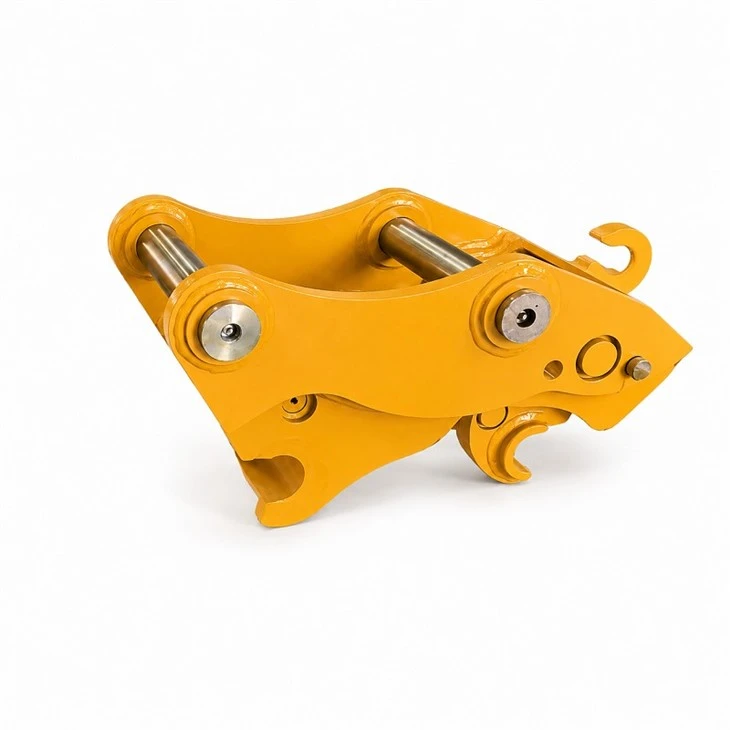

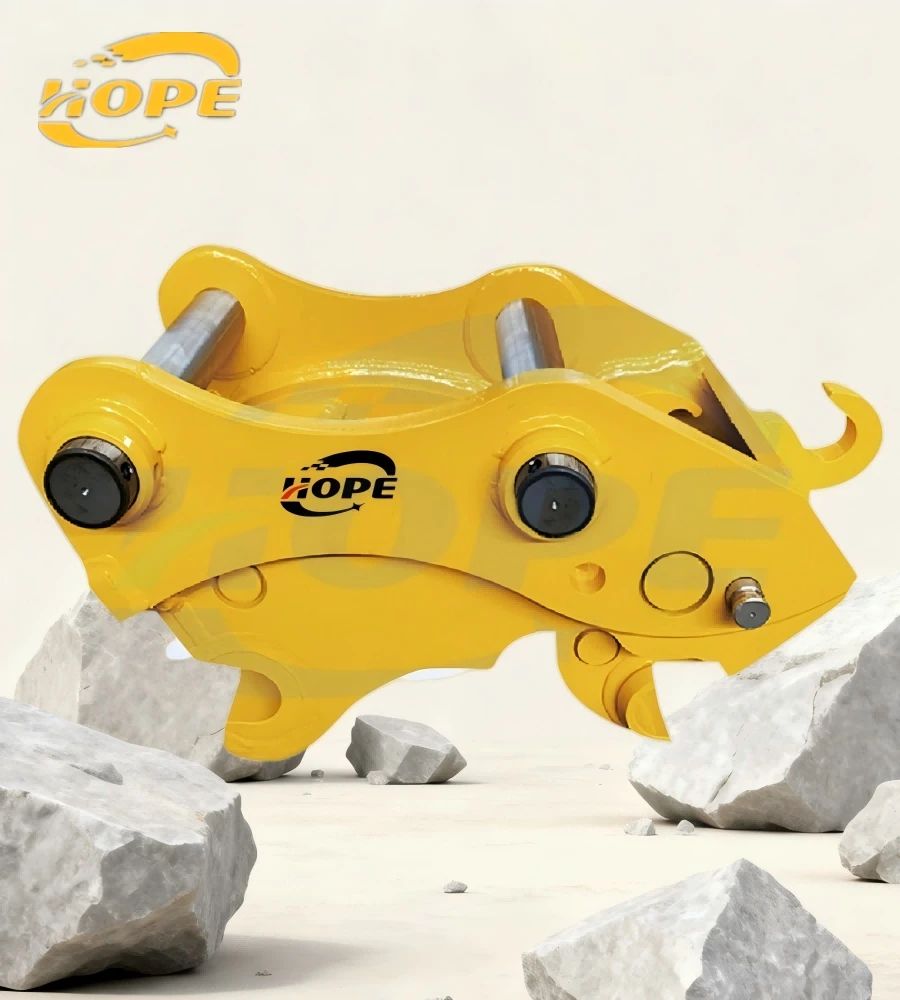

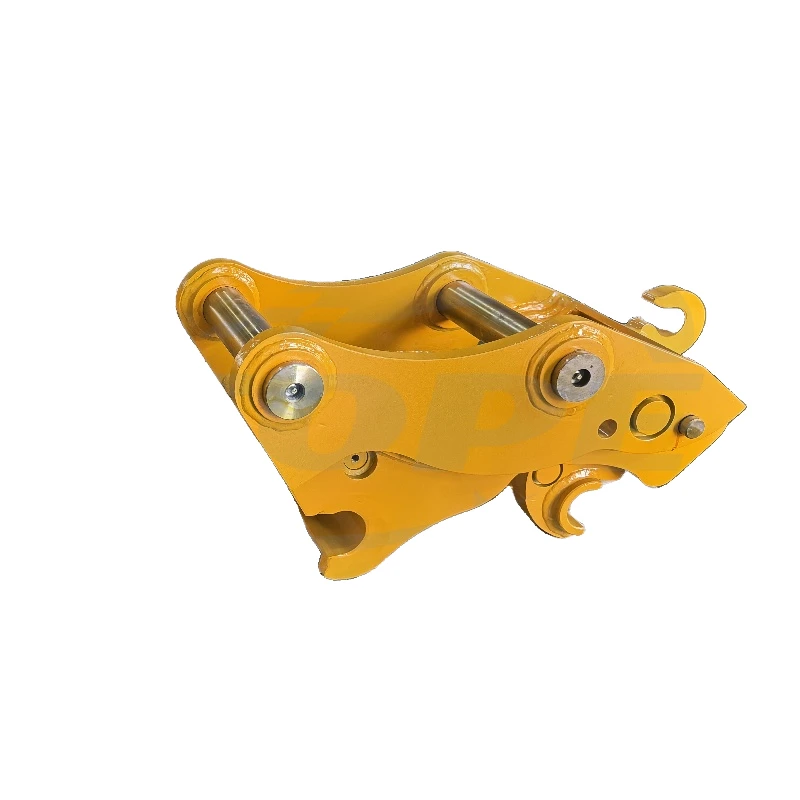

HOPE Hydraulic Quick Hitch rau Excavators
Yog tias koj muaj mob ntawm qhov hassle uas tuaj nrog swapping excavator txuas txhua lub sijhawm hloov txoj haujlwm, peb HOPE hydraulic ceev hitch yog qhov kho koj tau nrhiav. Tsis muaj fumbling nrog pins, tsis tas tos ib ncig ntawm lub cuab tam hloov uas noj rau hauv koj hnub ua hauj lwm -coupler no cia koj hloov ntawm thoob, breakers, augers, grapples, thiab ntau txoj cai los ntawm lub cab, nyob rau hauv feeb ca.
Peb tsim txhua qhov HOPE nrawm nrawm, siv cov khoom Q355 siab- lub zog steel uas tuaj yeem ua rau muaj kev sib tsoo ntawm kev tsim kho, rhuav tshem, thiab qhov chaw mining ib hnub thiab hnub tawm. Txawm hais tias koj tab tom khiav ib qho me me 1-tuj mini excavator rau thaj chaw thaj chaw lossis 45-tuj hnyav tshuab rau kev tsim loj, peb tau txais cov qauv uas haum koj cov cuab yeej zoo kawg nkaus, tig ib lub excavator rau hauv ntau lub cuab yeej rau koj txoj haujlwm tag nrho.
Vim li cas HOPE Quick Hitches Ua Haujlwm rau Txoj Haujlwm tiag
Ua kom outlast lub hnub ua haujlwm:Peb tsis txiav cov ces kaum ntawm cov khoom. Tag nrho Q355 steel qauv txhais tau hais tias qhov kev sib tsoo no tuaj yeem ua haujlwm hnyav thiab hnyav yam tsis muaj hnav sai, yog li koj tsis tas yuav hloov nws nruab nrab - project.
Tsis tas yuav nkim sij hawm ntau ntawm cov cuab yeej swaps:Lub kaw lus hydraulic yog qhov yooj yim txaus rau txhua tus neeg siv khoom siv. Load thiab unload attachments nyob rau hauv vib nas this, txiav down lub sij hawm downtime, thiab tau txais kev ua hauj lwm ntau ua ib tug ua hauj lwm - tsis muaj kev kawm zoo nkauj yuav tsum tau.
Fits yuav luag txhua qhov excavator thiab cov cuab yeej:Nws ua haujlwm nrog txhua tus qauv txuas rau pem hauv ntej, thiab peb tau txais qhov ntau thiab tsawg rau txhua hom excavator thiab tonnage, yog li koj tuaj yeem ua kom tus nqi ntawm cov tshuab koj twb muaj lawm.
Ua haujlwm nyab xeeb rau koj cov neeg ua haujlwm:Ditch tus pin phau ntawv ua haujlwm rau hauv av. Qhov kev cuam tshuam no txo qis ntawm - qhov kev pheej hmoo ntawm kev nyab xeeb ntawm qhov chaw thiab txo qis kev ua haujlwm, ua rau nws zoo meej rau cov neeg ua haujlwm uas hloov cov cuab yeej ntau zaus hauv ib hnub.
Tag nrho Specs rau Txhua Tus Qauv
|
Cov qauv |
Mini |
02 |
04 |
06 |
08 |
10 |
17 |
|
Haum Carrier (ton) |
1-4 |
5-6 |
7-9 |
10-17 |
18-24 |
25-32 |
33-45 |
|
Tag nrho Length (mm) |
360-475 |
534-545 |
600 |
820 |
944-990 |
1040 |
1006-1173 |
|
Tag nrho qhov siab (mm) |
250-300 |
307 |
320 |
410 |
520 |
600 |
630 |
|
Dav dav (mm) |
175-242 |
258-263 |
270-350 |
365-436 |
449-483 |
480-540 |
550-660 |
|
Pin Distance (mm) |
85-200 |
220-270 |
290-360 |
360-420 |
430-520 |
450-560 |
500-660 |
|
Arm Dav (mm) |
90-150 |
155-170 |
180-230 |
220-315 |
300-350 |
350-410 |
370-480 |
|
Upper Ncej Diameter (mm) |
25-40 |
45-50 |
50-55 |
60-65 |
70-80 |
90 |
100-120 |
|
Kev khiav hauj lwm siab (kg / cm²) |
40-100 |
40-100 |
40-100 |
40-100 |
40-100 |
40-100 |
40-100 |
|
Yuav Tsum Tau Roj Flow (l/min) |
10-20 |
10-20 |
10-20 |
10-20 |
10-20 |
10-20 |
10-20 |
|
Qhov hnyav (kg) |
45 |
70 |
80 |
180 |
350 |
550 |
750 |
Leej Twg Siv Peb Txoj Kev Ceev Ceev
Cov neeg cog lus, cov neeg ua haujlwm hauv vaj, cov neeg ua haujlwm rhuav tshem, thiab cov neeg xauj tsev nyob thoob plaws lub ntiaj teb vam khom HOPE ceev hitches rau txhua yam haujlwm:
- Kev tsim kho thiab kev rhuav tshem: Hloov ntawm cov thoob, tawg, thiab grapples rau qhov chaw npaj thiab khib nyiab pov tseg
- Kev tsim kho vaj tse thiab kev ua liaj ua teb: Sib pauv augers, thoob, thiab rakes rau khawb, cog, thiab kev faib av
- Txoj kev tsim thiab tsuas: siv nrog cov compactors, rauj, thiab thoob rau kev kho txoj kev thiab tuav cov khoom
- Khib nyiab thiab rov ua dua: Txuas grapples rau khib nyiab sorting thiab tuav cov khoom
Hais txog HOPE
Yantai Hope Precision Machinery Co., Ltd. yog tsev neeg -khiav chaw tsim khoom nyob rau hauv Yantai, Shandong, Suav. Peb tau tsim cov khoom siv excavator rau cov neeg siv khoom thoob ntiaj teb rau ntau tshaj kaum xyoo, thiab txhua qhov HOPE ceev hitch yog tsim nyob rau hauv peb lub Hoobkas, sim nruj me ntsis ua ntej xa khoom, thiab txhawb nqa los ntawm peb pab pawg engineers uas paub excavators sab hauv thiab tawm. Peb muab kev cai haum rau cov uas tsis yog- cov tshuab txheem, lub Hoobkas- tus nqi ncaj qha, thiab xa khoom sai thoob ntiaj teb kom tau txais koj cov khoom koj xav tau, thaum koj xav tau.
Hu rau hnub no los tham txog koj lub excavator thiab tau txais ib qho kev cai tsocai.
